TK-101 - TWIST THROTTLE, & CABLE, GRIPS - ARGO

TK-101 - TWIST THROTTLE, & CABLE, GRIPS - ARGO PARTS

Aftermarket replacement Argo twist throttle for models 1990 -2019.

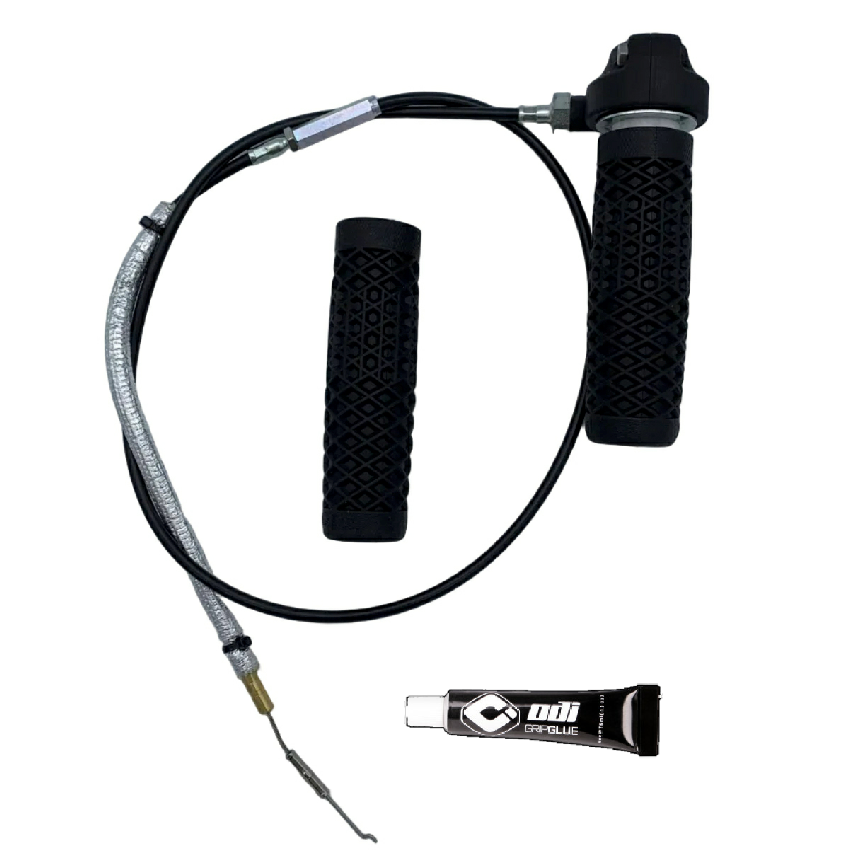

Kit Includes:

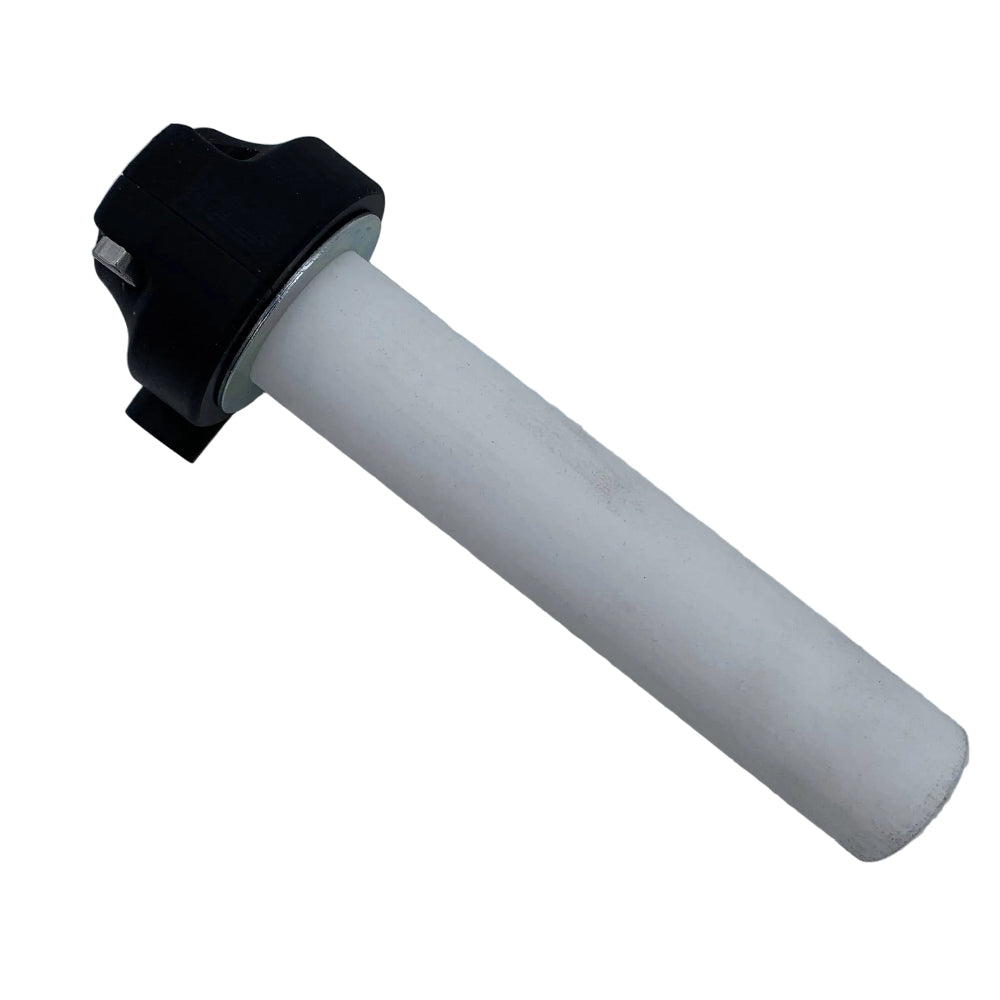

(1) 127-81AM - Twist Throttle Aftermarket
(1) 612-101 - Throttle Cable OEM Argo

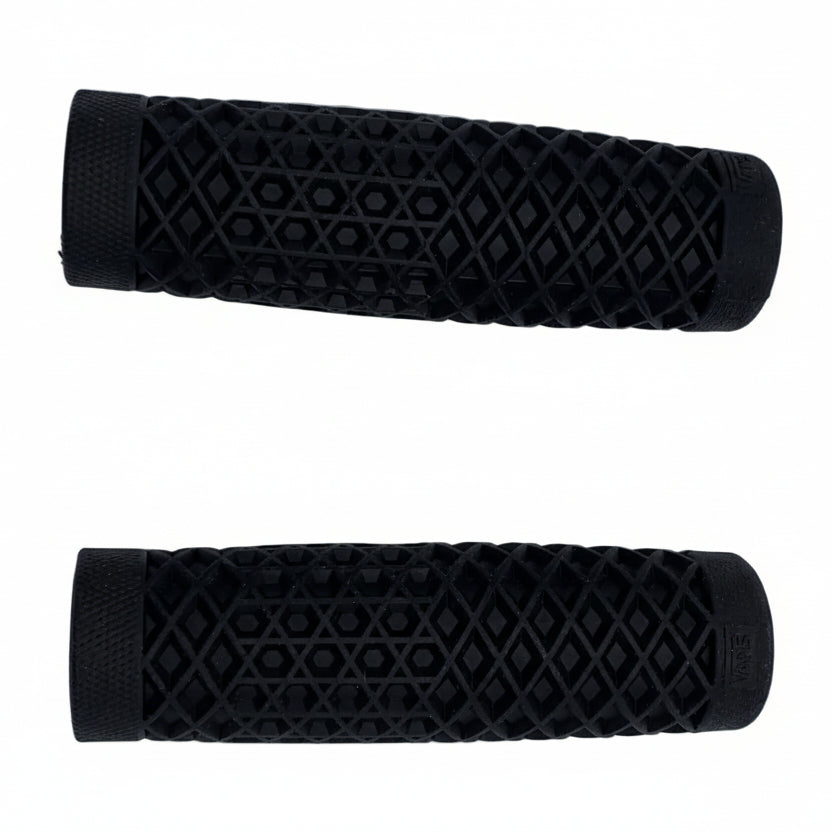

(1) 0630-2354 - Set of Comfort Grips
(1) 3711-0036 - Grip Glue

The original Argo OEM 127-81 twist throttle has been discontinued by Magura and Argo has not been able to source a replacement.  While at a price premium due to low manufacturing quantities, Doc's was able to have a custom version made that fits the 612-101 throttle cable perfectly and will keep your Argo running.

Fits Argo XTV Models:

All models from 1999 - 2019*


If your model is older, please call for the correct cable and kit configuration or see the superseded notes below.


* Not compatible with the 2019 Aurora 8x8 or any model 2020 or newer with the finger pull throttle.

Installation Tech Tip:

To remove the grip with little effort, you can either carefully pull or cut it off or take an air hose from a compressor and place it at the small hole at the end of the grip, insert air in the hole in a circular motion while you pull towards yourself.  To install a new grip, apply a little grip glue to the inside of the grip, place the end of the grip on the throttle tube about a 1/2 inch to 1 inch and insert air in the grip end hole and push on while applying air in a circular motion.  Be sure the grip overhangs the handlebar about 1/4 so the throttle tube clamped on the handlebar works best.  DO NOT overtighten the screw/nuts on the throttle tube or you will crack the plastic, tighten so the throttle base does not rotate when twisting the throttle.

AVENGER 750 & 700 / HDI 750 / HD 700

Model years 2004 -2014 the original throttle cable was a 612-116 and now is discontinued. use cable 612-101 or order kit TK-101.  See download tab to install.

fits all Avenger 700, Avenger 750 EFI, HD 700 and HDI 750 8x8. HDI SE from years 2004 - current production on the 2015 models was switched to the 612-101 CABLE.

 ---------------------------------------------------

BIGFOOT 6X6

BIGFOOT 1997 - 1999

The stock throttle cable was a 612-76. This cable is replaced by ordering a 612-101 and new throttle twist grip 127-81AM. The 612-76 cable is no longer available.  Slight modification may be needed to get the throttle cable to fit on the throttle plate.

BIGFOOT 6X6 2000-2006

The stock cable is a 612-101 for use with throttle tube 127-81AM.

-------------------------------------------------

CONQUEST 8X8

CONQUEST 1994 - 1996

Stock throttle cable 612-90 is replaced by throttle cable 812-28. Also requires parts 125-88 and 127-52 to upgrade for the 812-28 to fit. You will use the stock 100-57 chrome throttle twist grip to install these parts. Visit part 812-28 for modification instructions. If you need to replace the throttle, the new style 612-101 throttle cable and 127-81AM throttle twist grip can be used however you will need to jury rig it to work as the cable and mounting is different. If you order a 612-101 and 127-81AM (Kit TK-101) you do not need cable 812-28. If you can save your stock chrome throttle twist grip do so, so you don't have to jury rig the newer version cable/throttle twist grip on your vehicle.

CONQUEST 1997

812-28 is the stock cable for the above year. No modifications are required if you are using the stock 100-57 chrome throttle twist grip. If you need to replace the throttle cable and throttle twist grip the new style 612-101 cable and 127-81AM (Kit TK-101) throttle twist grip can be used however you will need to jury rig it to work as the cable and mounting are different. The 100-57 chrome throttle twist grips are no longer available. Do your best to save the chrome throttle twist grip so you don't have to modify the throttle system.

CONQUEST 1998 - 1999

To replace throttle cable # 612-76 you will need to order throttle cable 612-101 and new throttle twist grip 127-81AM (Kit TK-101). These parts are currently available and will bolt with little modifications needed.

CONQUEST 2000 - 2007

The above years use throttle cable 612-101 and plastic throttle twist grip 127-81AM. Both items are currently available and are direct replacements for the stock cable and throttle twist grip mounted on the above years.

-------------------------------------

RESPONSE 8X8 INFORMATION

RESPONSE 1995 -1999

To replace throttle cable 612-93 you will need to upgrade to throttle cable 612-101 and throttle twist grip 127-81AM (Kit TK-101). The 612-101 throttle cable will not work with the stock 100-57 chrome throttle twist grip found on the response. Throttle cable 612-93 is no longer available.

RESPONSE 2000 - 2006

The stock throttle cable is a 612-101 and the throttle twist grip is 127-81AM.

--------------------------------------------

VANGUARD & VANGUARD 2 6X6

VANGUARD / VANGUARD 2 6X6 1992 - 1995

The stock throttle cable 612-89 is replaced with throttle cable 612-77. For use only with the stock 100-57 chrome throttle twist grip. Will not fit the new 127-81AM plastic throttle twist grip. If you need to replace the throttle twist grip and cable you can order 612-101 and 127-81AM (Kit TK-101) and jury rig.

VANGUARD / VANGUARD 2 6X6 1996 -1999

The stock cable is a 612-77 for use only with chrome 100-57 throttle twist grip. Will not fit the new 127-81AM plastic throttle twist grip. If you need to replace the throttle twist grip and cable you can order 612-101 and 127-81 (Kit TK-101) and jury rig.

VANGUARD / VANGUARD 2 6X6 2000 - 2006

The stock throttle cable is 612-101 and throttle twist grip is a 127-81AM.
